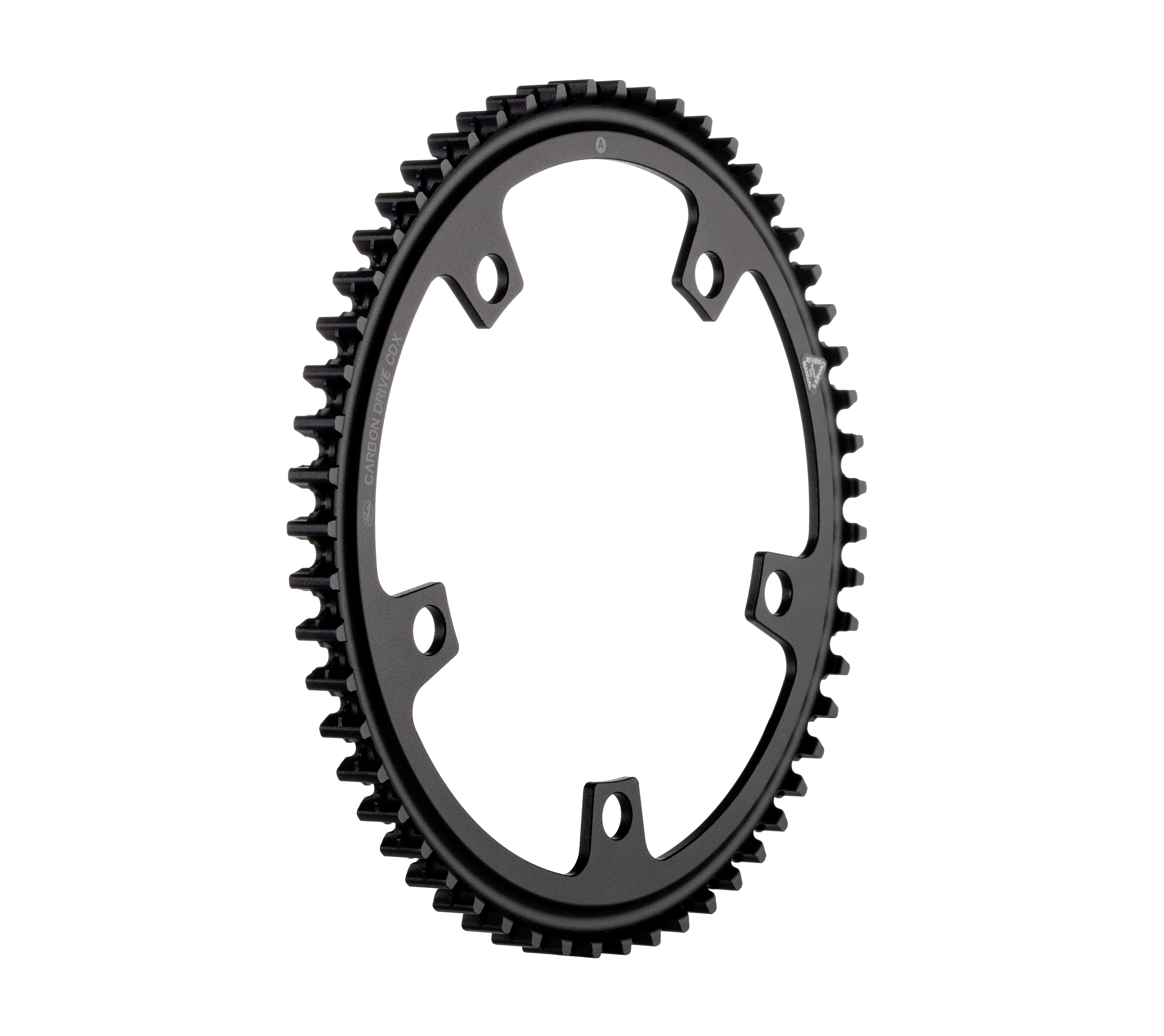

CDX Front Sprocket, 5-B, BCD-130, Offset -3,85mm
Article number:
78980696-AM
Manufacturer number:
XF1155D5AA
previous Article number:
CDXFSH255-AM
Product information "CDX Front Sprocket, 5-B, BCD-130, Offset -3,85mm"
Gates CDX Center Track Sprocket Front – for 5 – arm cranks – DI2
The Gates CDX Centertrack Sprocket is made from lightweight, durable aluminium for smooth running, low maintenance and trouble-free operation in snow and mud thanks to the Mudports open tooth profile. In addition, the surface is hard anodised for longer life. The patented CenterTrack design with central guide flange also ensures that the belt will not run off.
Note: Shimano D-Spec sprockets have a bigger offset (3.85mm) than regular sprockets (3.1mm).
Technical Data
Material: 6061 aluminium
Wear-resistant due to hard anodised surface
Colour: black
Mounting: 5 holes
bolt circle: 130 mm
Centre track design with central guide flange /Fin Line
Pitch: 11 mm
Specifications
| Article Group | Vordere Riemenscheibe |
|---|---|
| Main-System | CDX |
| Intended use | City, MTB, Trekking / Gravel |
| System | CDX |
| artikel | 5-Arm D-Spec (Offset) |
| Tooth count | 55 |
| BCD | 130mm |
| Material | AL6061 |
| Color | black |
| Pitch | 11mm |
