CDX Fin Line Spider Assembly, 5B, BCD 130 - Bosch GEN4
Gates CDX Fin Line sprocket - spider unit - front - for 5-arm cranks

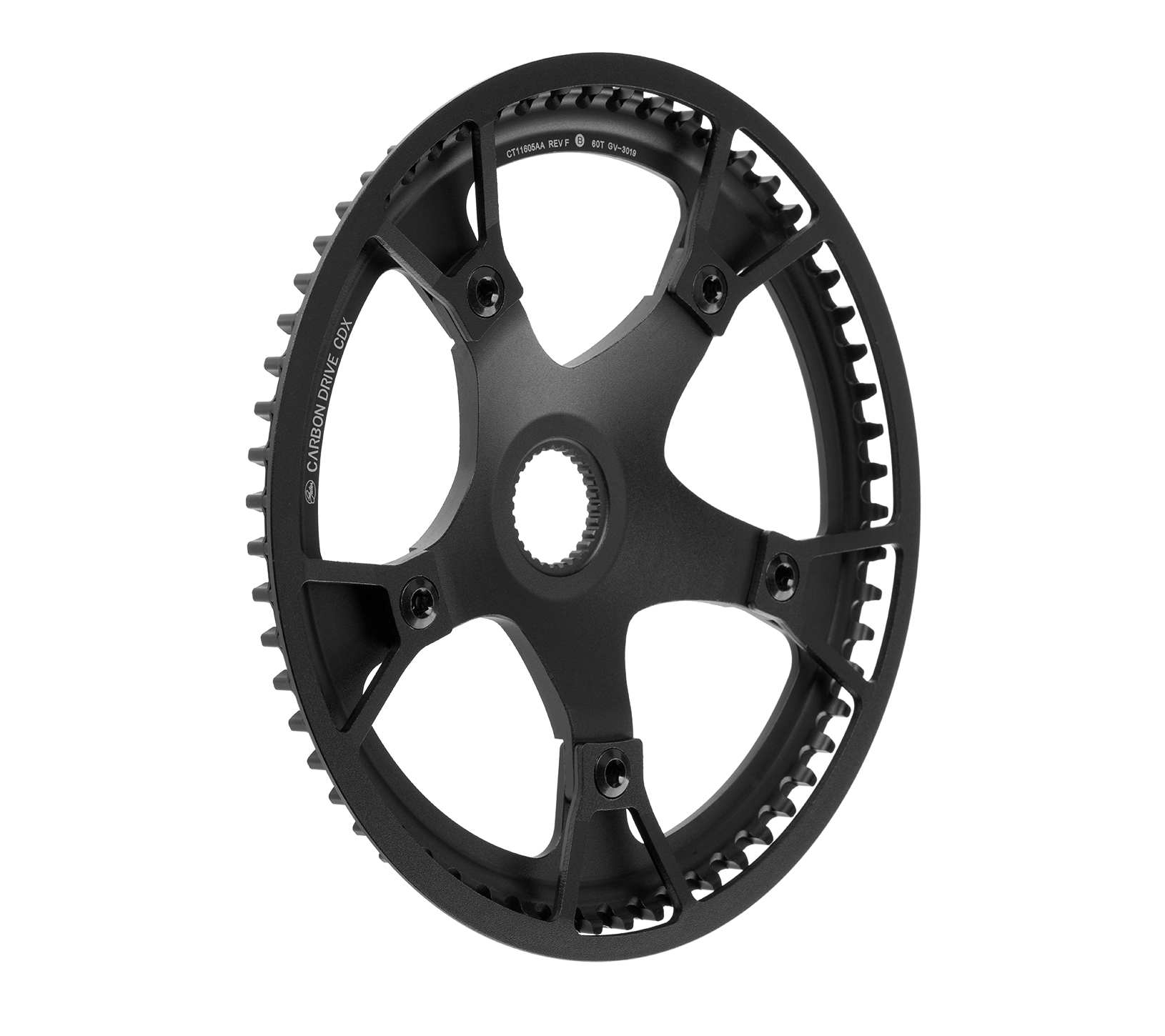

This front Gates CDX Finline sprocket with spider unit and guard has four arms and is made of lightweight, robust aluminum. Ideal for trekking and off-road use, it offers particularly trouble-free operation as well as smooth running and low maintenance thanks to its free tooth profile (Mudports). The hard-anodized surface ensures a longer service life.
Please note
Please check in advance whether the Spider unit is suitable for your drive!
Technical specifications
Material: 6061 aluminum
Wear-resistant due to hard anodized surface
Color: black
Mounting: 5 holes
Bolt circle: 104 mm
Finline design with central guide flange
With or without guard available
weight optimized, cutting edge design
Pitch: 11 mm
Specifications
| Article Group | Spider Assemblies |
|---|---|
| Main-System | CDX |
| Intended use | City, MTB, Trekking / Gravel |
| System | CDX:Fin Line |
| Interface | Bosch GEN4 |
| Beltline | 54,7mm |
| Tooth count | 60 |
| BCD | 130mm |
| Guard | Alu-Guard |
| Material | AL6061 |
| Color | black |
| Motor offset | 0mm |
| Pitch | 11mm |
