CDX Fin Line Rear Sprocket, Enviolo 9-SPLINE

Article number: 78980737-AM
Manufacturer number: XF1122E9MN

€91.00

Product information "CDX Fin Line Rear Sprocket, Enviolo 9-SPLINE"

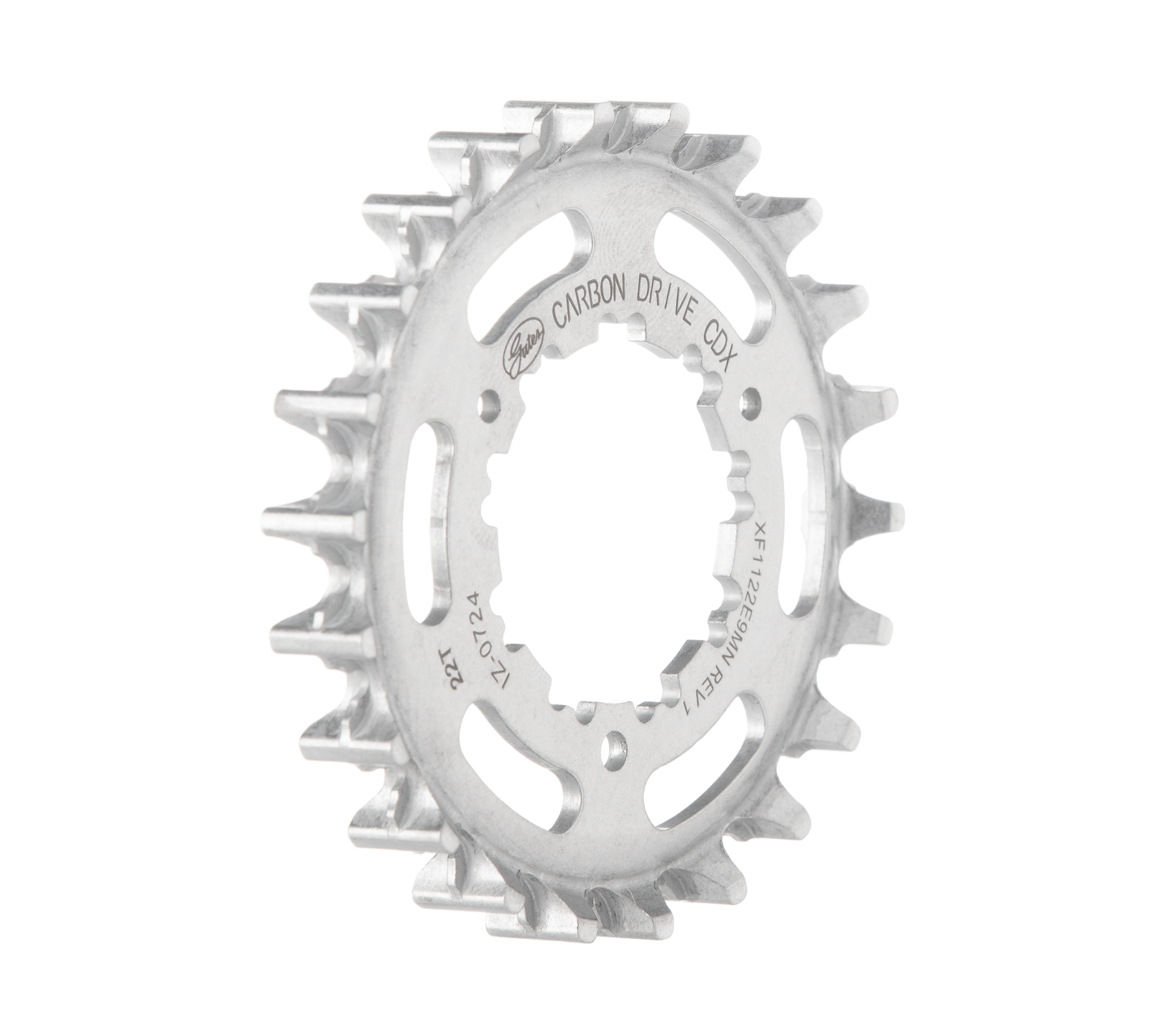

Gates CDX Finline sprocket - Rear

This Gates CDX Finline sprocket is ideal for daily use on e-bikes or trekking bikes and can withstand even the highest loads. Enviolo updates the design of the freewheel by changing the sprocket mount from a snap ring to a threaded retaining ring. This change improves retention and significantly minimizes noise from the sprocket under adverse conditions. In addition, the proven tooth profile (Mudsports) offers optimum performance and durability. The patented center track design with central guide flange also ensures that the belt does not run off.   



Note: The sprocket is not compatible with hubs from model year 2023 or earlier!



Technical data

  • Material: wear-resistant aerospace stainless steel

  • Color: black

  • Finline design with central guide flange

  • Pitch: 11 mm




Specifications
Article Group Rear Sprockets
Main-System CDX
Intended use City, MTB, Trekking / Gravel
System CDX:Fin Line
Interface Enviolo E9 - ab MJ 25
Beltline 45,5mm / 50,0mm
Tooth count 22
Material stainless Steel
Color silver
Pitch 11mm
