CDX Spider Assembly, 5B, BCD 130 - Bosch GEN4

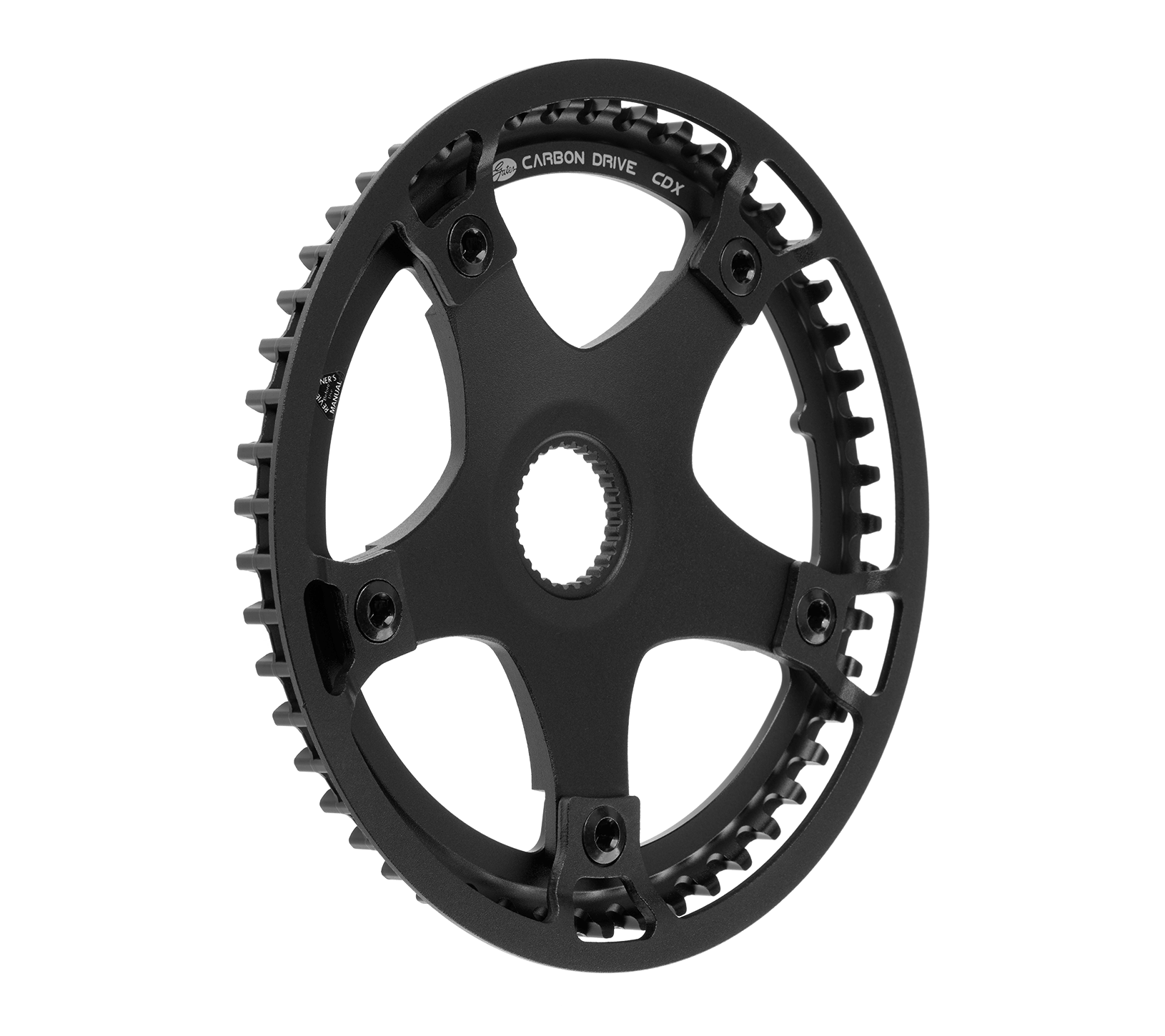

Gates CDX Center Track sprocket - spider unit - front - for 5-arm cranks
This front Gates CDX Center Track sprocket with spider unit and guard has four arms and is made of lightweight, robust aluminum. Ideal for trekking and off-road use, it offers particularly trouble-free operation as well as smooth running and low maintenance thanks to its free tooth profile (Mudports). The hard-anodized surface ensures a longer service life. The patented Center Track design with central guide flange ensures that the belt does not run off.
Please note
Please check in advance whether the Spider unit is suitable for your drive!
Technical specifications
Material: 6061 aluminum
Wear-resistant due to hard anodized surface
Color: black
Mounting: 5 holes
Bolt circle: 104 mm
Center track design with central guide flange
With or without Guard available
weight optimized, cutting edge design
Pitch: 11 mm
Specifications
| Article Group | Spider Assemblies |
|---|---|
| Main-System | CDX |
| Intended use | City, MTB, Trekking / Gravel |
| System | CDX |
| Interface | Bosch GEN4 |
| Beltline | 45,5mm |
| Tooth count | 50 |
| BCD | 130mm |
| Guard | Alu-Guard |
| Material | AL6061 |
| Color | black |
| Motor offset | 0mm |
| Pitch | 11mm |
